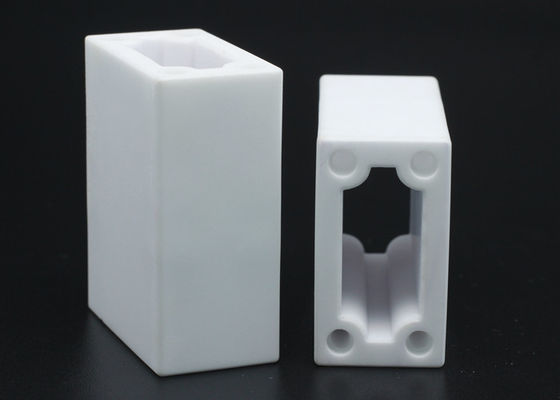

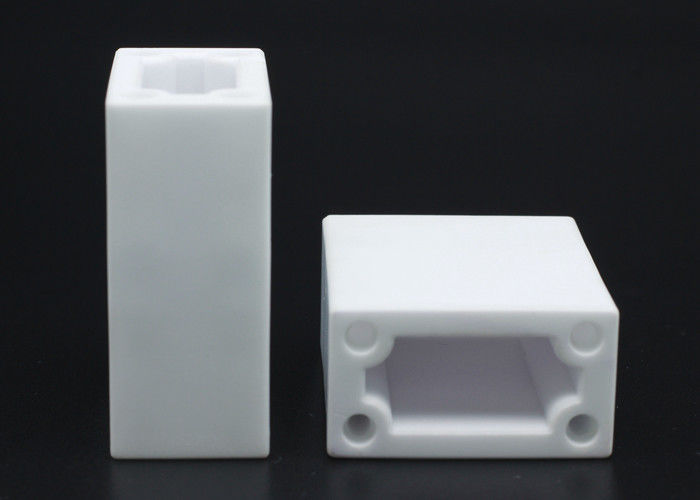

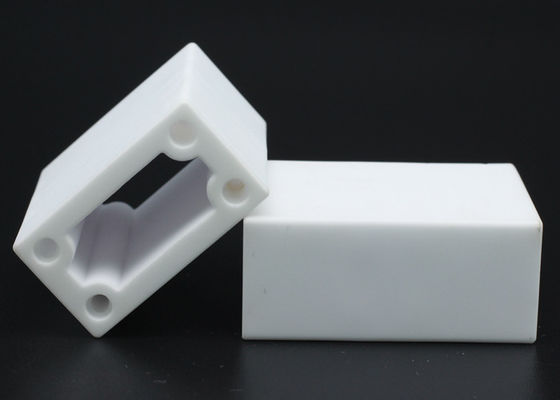

95% alumina ceramic parts for fuses
Product Details:
| Place of Origin: | China |
| Brand Name: | CMC |
| Certification: | ISO9001, IATF16949, ISO14001, ISO45001, RoHS |
| Model Number: | FS705 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 Pieces |
|---|---|
| Price: | USD 0.5~2.5/piece |
| Packaging Details: | Foam+Carton |
| Delivery Time: | 20 work days |
| Payment Terms: | D/P, T/T, Western Union, D/A, L/C, MoneyGram |
| Supply Ability: | 500,000 pieces per month |
|
Detail Information |
|||
| Material: | Alumina | Color: | White |
|---|---|---|---|
| Application: | Fusegear | Density: | 3.7g / Cm3 |
| Feature: | High Temperature Resistance | Product Name: | Machining Ceramic Parts |
| High Light: | Fusegear Alumina Porcelain Housing,IATF16949 Alumina Porcelain Housing |
||
Product Description
95% alumina ceramic parts for fuses
1. Description:
Fusegear series ceramics are produced by using high-purity composite alumina combined with dry-pressing method, which are widely used in electrical protection products.
2.Applications:
The main applications are charging stations, power storage stations, new energy vehicles, intercity commuting trains, network equipments and new infrastructures.
3.Specifications:
Material: 95% alumina or steatite as per customer requirements
Machining Type: dry-processing
Color: white, beige, pink or customized per customer requirements
4. Feature Advantage:
Ceramics are with uniform texture and good batch stability
Outstanding arc extinguish competency
Ceramics are with high flexural strength, high tensile strength and good air tightness
It can meet the requirement of high frequency, high power and good safety components
5. Key Words:
Fuse Ceramic parts, Fusegear ceramic, Electric protection system, New energy, fast-acting fuse, Steatite.
6. Paremeters:
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
