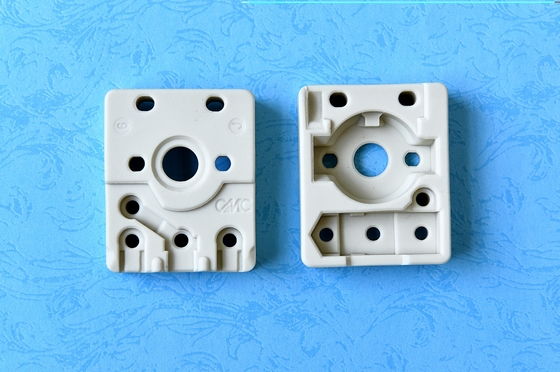

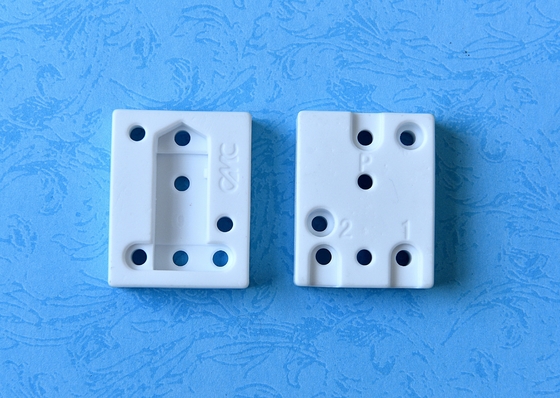

Ceramic Insulator Eelectronic Part for Thermotat
Product Details:
| Place of Origin: | China |
| Brand Name: | CMC |
| Certification: | ISO9001, IATF16949, ISO14001, ISO45001, RoHS |
| Model Number: | TMC-07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Price: | USD0.05-0.2 |
| Packaging Details: | carton |
| Delivery Time: | 20 work day |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80,000/month |
|
Detail Information |
|||
| Color: | As Per Customer | ||
|---|---|---|---|
Product Description
Steatite Ceramic for Electric Appliance, Porcelain Electric Heater, Thermostat and Insulator
1. Description:
The ceramic series are made of steatite. The production methods include dry pressing and hot press injection.
2. Key Words:
Thermostat, steatite part,Precision ceramic part, Electric and Electronics,household appliace,High temperature resistance, outstanding insulation.
Anti corrosion, abrasion resistance, impact resistance.High precision, high stability, wide range of measurement,white, beige, or customized ,temperature control system, electrics and electronics, thermotate,dry-processing & hot press injection,
3. Parameters:
| Product Parameters | ||
| Physical Property | Material | Steatite |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 2.6g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 180Mpa |
| Modulus of Elasticity (Gpa) | 120Gpa | |
| Hardness (Gpa) | 5.7Gpa | |
| Poisson Ratio | 0.21 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.9 |
| Heat Conductivity (W/mk) | 2 |
|
