Aluminum Oxide Ceramic Parts for Relay Components
Product Details:
| Place of Origin: | China |
| Brand Name: | CMC |
| Certification: | IATF16949, ISO9001, ISO14001 |
| Model Number: | NE100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pieces |
|---|---|
| Price: | USD 1.5~3.0/piece |
| Packaging Details: | Foam plate ,plastic film, paper plate and carton |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, Western Union, D/P, D/A, MoneyGram, MoneyGram |
| Supply Ability: | 60,000 pieces per month |
|
Detail Information |
|||
| Material: | 95% Alumina | Color: | White, Pink |
|---|---|---|---|
| Unit: | Piece | Application: | Electronic Componets |
| Name: | Ceramic Electronic Components | Density: | 3.7g/cm3 |
| High Light: | HVDC Contactors Ceramic Electronic Components,CMC Ceramic Electronic Components,CMC Ceramic HVDC Contactors |
||
Product Description

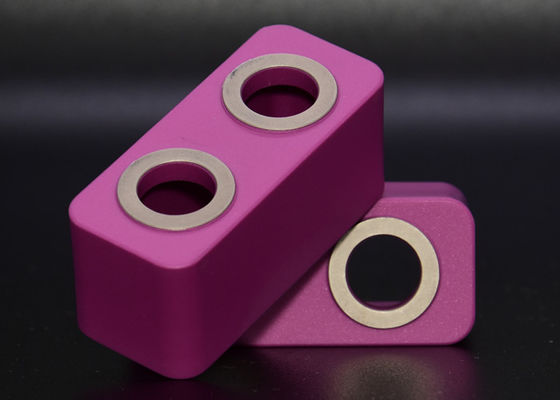

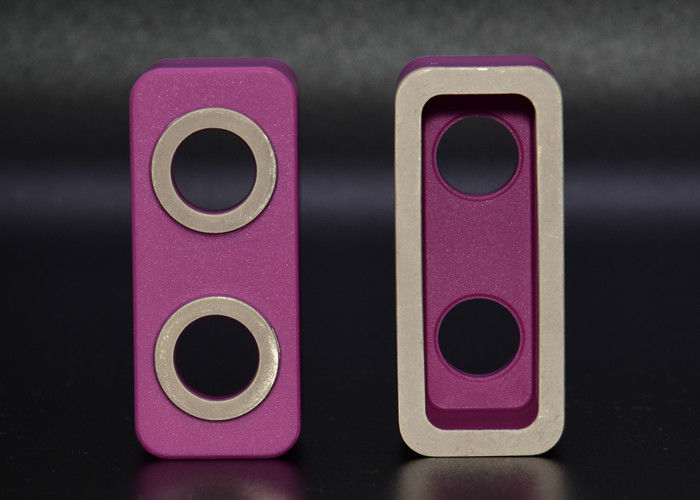

Aluminum Oxide Ceramic Parts for Relay Components
1. Description:
The new energy series ceramics are produced by high purity complex alumina and nano metallization. It is suitable for brazing of different materials such as copper, aluminum and felling. This series consist of HVDC relay ceramic housing, HVDC contactor ceramic shield, Fusegear ceramic case, ceramic connector for power battery cell.
2. Applications:
They are mainly applied in Relay components, so it is called relay ceramic parts.The relay is applied in EV vehicles, PHEV vehicles, power charing stations, power storage stations.
3. Customized Service:
Meicheng Co provides service of opening moulds and making samples for clients on bassis of technical drawings.
4. Feature Advantage:
Ceramics are with uniform texture and good batch stability
Nickel layer is compact, continuous, smooth and weldability.
Ceramics are with high flexural strength, high tensile strength and good air tightness
It can meet the requirement of high frequency, high power and good safety components
5. Key Words:
New energy, EV relay, HVDC contactor, Fast acting fusegear, Vacuum interrupter, Power battery cell connector, Arc extinguish.
6. Parameter Table
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
| Metalized Ceramic Performance | Air Tightness (Pa·m3/s) | ≤10-8 |
| Bulk Resistivity (Ω·cm) | ≥1010 (20°C), ≥106 (300°C) | |
| Bonding Strength (Mpa) | ≥120Mpa | |
| Metallization Thickness (μm) | ≥20μm | |
