Wear Resistant Metallized Ceramic Magnetron Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | CMC |
| Certification: | ISO9001, ISO14001, ISO45001, RoHS |
| Model Number: | MS28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 Pieces |
|---|---|
| Price: | USD 0.35~1.58/piece |
| Packaging Details: | Package : Foam. Blister Bags, Carton |
| Delivery Time: | 20 work days |
| Payment Terms: | D/P, T/T, Western Union |
| Supply Ability: | 1,000,000 pieces per month |
|
Detail Information |
|||
| Material: | Alumina | Color: | White, Pink |
|---|---|---|---|
| Application: | Magnetron | Size: | Size Customized |
| Usage: | Wear-resisting Material | Shape: | Customized |
| High Light: | Metallized Ceramic Magnetron Parts,Wear Resistant Magnetron Parts,Metallized Ceramic Magnetron Spare Parts |
||
Product Description

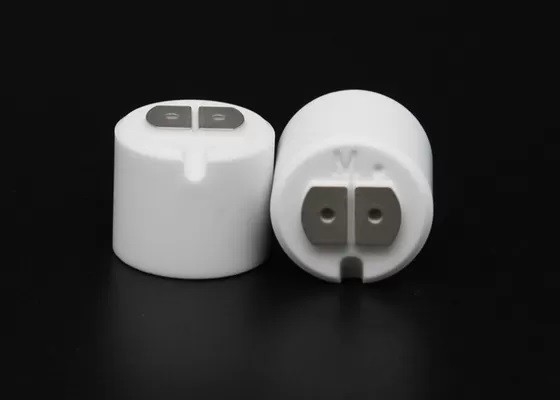

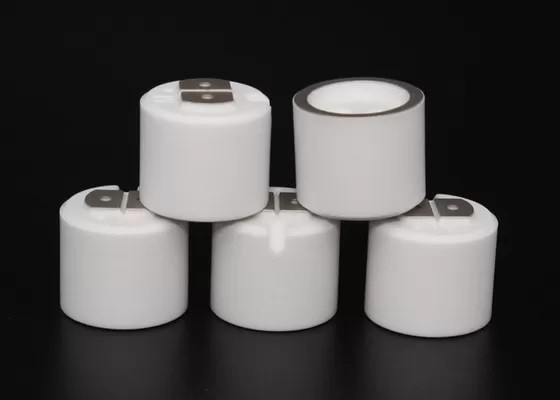

MS28 magnetron ceramic parts
1. Description:
MS28 magnetron ceramic parts is made of HPA 95% Alumina material, and it is applying to in magnetron parts as one structual assembly.contaction position of ceramic parts is nickle plating.
2. Customized Service :
We provide customized service according to technical drawing and 3D drawings, we have one factory to open mould and make samples for customers.
3. Feature Advantage:
The nickel layer is dense, continuous, flat and weldable. Ceramics are with high flexural strength, high tensile strength and good air tightness.
4. Technical Parameters:
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
