ISO14001 Metallized 95% Alumina Ceramic Structural Components EV part HVDC Relay part
Product Details:
| Place of Origin: | China |
| Brand Name: | CMC |
| Certification: | IATF16949, ISO9001, ISO14001 |
| Model Number: | NE117 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pieces |
|---|---|
| Price: | USD 1.5~3.85/pcs |
| Packaging Details: | Plastic film+paper plate+carton |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 60,000 pieces per month |
|
Detail Information |
|||
| Material: | 95% Aluminum Oxide | Color: | Pink |
|---|---|---|---|
| Application: | High Voltage DC Relay | Density: | 3.7g/cm3 |
| High Light: | 95% Alumina Ceramic Structural Components,ISO14001 Structural Components,Metallized Ceramic Structural Parts |
||
Product Description

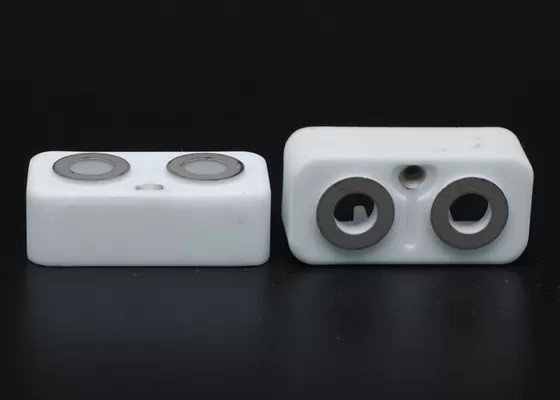

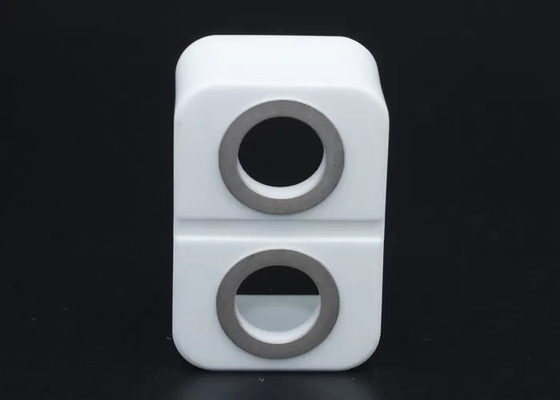

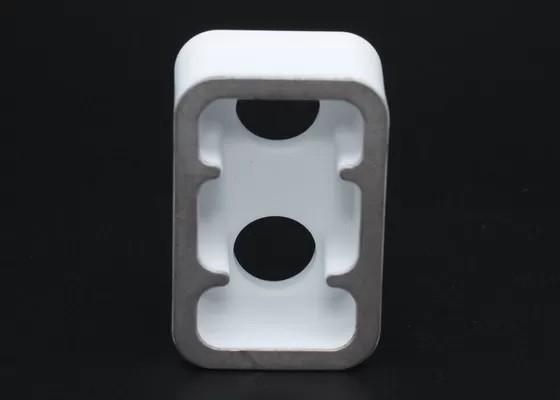

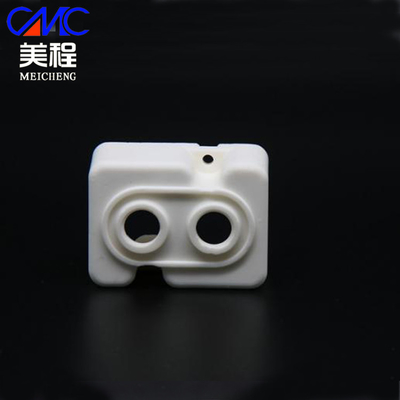

metalization high voltage DC ceramic structual components
1. Description:
This product is made of aluminum oxide, it is nickle plate on suface, it is very good to braze other metals together to reach good sealed results.
2. Applications:
Alumina ceramic components used in HVDC relay of new energy electric vehicle
3. Technica Parameters Table :
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
| Metalized Ceramic Performance | Air Tightness (Pa·m3/s) | ≤10-8 |
| Bulk Resistivity (Ω·cm) | ≥1010 (20°C), ≥106 (300°C) | |
| Bonding Strength (Mpa) | ≥120Mpa | |
| Metallization Thickness (μm) | ≥20μm | |
