Product Details:

Place of Origin: China
Brand Name: CMC
Certification: IATF16949, ISO9001, ISO14001, ISO45001
Model Number: NE100

Payment & Shipping Terms:

Minimum Order Quantity: 2000 pieces
Price: USD 0.2~2.0/piece
Packaging Details: Plastic film+paper plate+carton
Delivery Time: 20 work days
Payment Terms: T/T, Western Union, D/P, D/A, MoneyGram, , MoneyGram
Supply Ability: 60,000 pieces per month
Get Best Price Contact Now

Detail Information

Material: 95% Alumina Color: White
Unit: Piece Product Name: Porcelain Electrical Connectors
Application: Electronic Componets
High Light:

Metallized Porcelain Electrical Connectors

,

95 Alumina Porcelain Electrical Connectors

,

95 Alumina Ceramic Electronic Components

Product Description

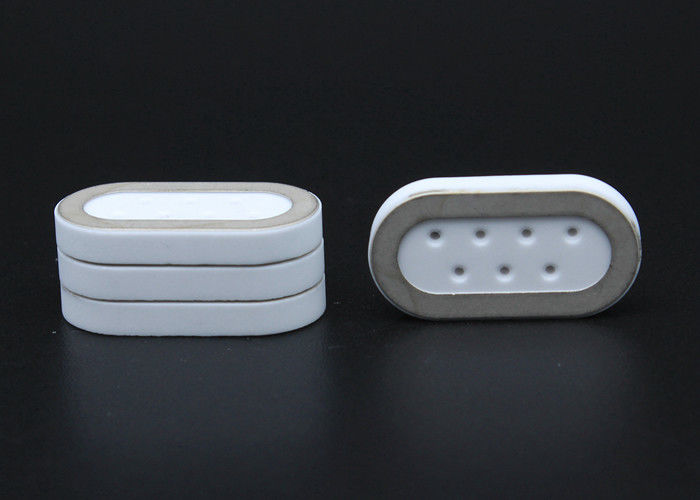

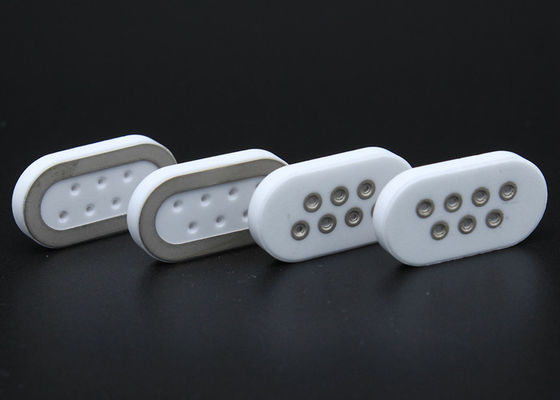

95 Alumina Metallized Ceramics of Electrical Connectors



1. Description:

  The alumina ceramics components are produced by high purity complex alumina and nano metallization. it is electroplated nickel on surface,

 the Nicke It is suitable for brazing of different materials such as copper, aluminum and kovar.



2. Applications:

    The alumina ceramic part is mainly used in power battery cell , it is installed in parts of EV vehicles, PHEV vehicles.



3. Specifications:

    Material: 95% alumina

    Machining Type: dry-processing

    Color: white or customized per customer requirements



4. Feature Advantage:

    Ceramics are with uniform texture and good batch stability

    Nickel layer is compact, continuous, smooth and weldability.

    Ceramics are with high flexural strength, high tensile strength and good air tightness

    It can meet the requirement of high frequency, high power and good safety components



5. Parameters:



Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm


95 Alumina Metallized Ceramics of Electrical Connectors 0

95 Alumina Metallized Ceramics of Electrical Connectors 1

95 Alumina Metallized Ceramics of Electrical Connectors 2

95 Alumina Metallized Ceramics of Electrical Connectors 3
