ISO9001 95% Aluminium Oxide Ceramic Structural Components
Product Details:
| Place of Origin: | China |
| Brand Name: | CMC |
| Certification: | ISO9001, IATF16949, ISO14001, ISO45001, RoHS |
| Model Number: | CMC18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100000 Pcs |
|---|---|
| Price: | USD 1.58~2.85/pcs |
| Packaging Details: | package : it adopts foam, plastic bags,foam ,plactic film and carton |
| Delivery Time: | 7 work days |
| Payment Terms: | D/P, T/T, Western Union |
| Supply Ability: | 50,000,000 pieces per month |
|
Detail Information |
|||
| Material: | Alumina | Color: | White |
|---|---|---|---|
| Type: | Ceramic Structual Components | Size: | Size Customized |
| Density: | 3.75g/Cm3 | ||
| High Light: | Aluminium Oxide Ceramic Structural Components,ISO9001 Ceramic Structural Components,95% Aluminium Oxide Ceramic Structural Parts |
||
Product Description

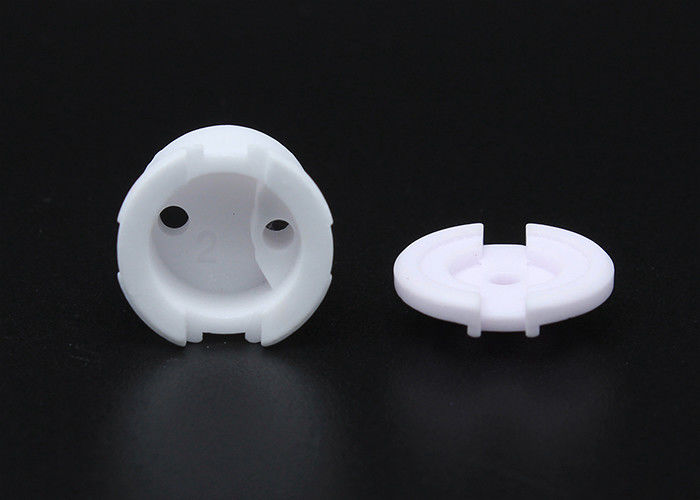

95% Aluminium Oxide Ceramic spare parts
1.Descriptions of Ceramic spare parts
95% Aluminium Oxide Ceramic spare parts has the characteristics of strong wear resistance, good corrosion resistance, good sealing performance, long service life, high tensile strength, it is not easy to deform, high temperature resistance, low temperature resistance.
2.Key Words:
alumina ceramic, aluminium oxide ceramic, alumina cerammic machining, high alumina ceramic tube, alumina ceramic substrate, custom ceramic parts, alumina ceramic rod, alumina ceramic plate.
3.Specification Parameters:
| Product Parameters | ||
| Physical Property | Material | 95% Alumina |
| Production Process | Dry Pressing | |
| Product Dimension | Per customers' drawing | |
| Density (g/cm3) | 3.70-3.75g/cm3 | |
| Water Absorption | 0% | |
| Mechanical Performance | Flexural Strength (Mpa) | 310Mpa |
| Modulus of Elasticity (Gpa) | 310Gpa | |
| Hardness (Gpa) | 12.9Gpa | |
| Poisson Ratio | 0.23 | |
| Thermal Character | Linear Thermal Expansion Coefficient | 7.2 |
| Heat Conductivity (W/mk) | 23 | |
| Electrical Property | Dielectric Constant | 9.2 |
| Dielectric Loss Tangent (x10-4) | 8 | |
| Insulation Strength (x106V/M) | 15 | |
